RN2 S1206N is a 8W termination with high-power capacity and stable performance in different temperatures. The AlN, high conductivity metal conductor (Ag), and gold (Au) plating enable S1206N to low return loss and improve durability for thermal stabilization and electricity.
RN2 S1206N is suited for applications using GSM, UMTS, and LTE and communications equipment, requiring high power. RN2S1206N supports up to average 8 watts. It is a SMD type product enabling Pb-Free solder and meets RoHS-6.
RN2 8W Termination S1206N KEY FEATURES：
1、Frequency range DC – 6000 MHz
2、Excellent high-power capacity up to average 8 watts
3、Excellent stable performance at different temperatures
4、Low insertion loss Max. 0.25dB, high conductivity metal conductor (Ag), and gold (Au) plating
5、Small size (3.05 x 1.52 mm) SMD package
6、RoHS compliance (Pb-Free)
RN2 8W Termination S1206N APPLICATIONS：
1、Applications using mobile networks, broadcast
2、High power amplifiers
3、Isolator, Circulator
4、Military
RN2 S1206N is suited for applications using GSM, UMTS, and LTE and communications equipment, requiring high power. RN2S1206N supports up to average 8 watts. It is a SMD type product enabling Pb-Free solder and meets RoHS-6.
RN2 8W Termination S1206N KEY FEATURES：
1、Frequency range DC – 6000 MHz
2、Excellent high-power capacity up to average 8 watts
3、Excellent stable performance at different temperatures
4、Low insertion loss Max. 0.25dB, high conductivity metal conductor (Ag), and gold (Au) plating
5、Small size (3.05 x 1.52 mm) SMD package
6、RoHS compliance (Pb-Free)
RN2 8W Termination S1206N APPLICATIONS：
1、Applications using mobile networks, broadcast
2、High power amplifiers
3、Isolator, Circulator
4、Military

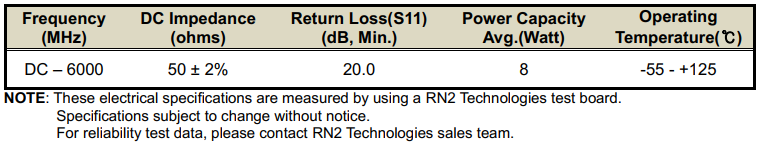

RN2 8W Termination S1206N ELECTRICAL SPECIFICATIONS：
