RN2 CMX35P20 is a 20dB Directional coupler with high-power capacity and stable performance operating temperatures. LTCC (Low Temperature Co-fired Ceramic), high conductivity metal conductor (Ag), and gold (Au) plating enable the CMX30P20 to minimize insertion loss and improve durability for thermal stabilization and electricity.
RN2 CMX30P20 is best application solution for GSM, UMTS, and LTE and communications equipment, requiring low insertion loss and high power.RN2 CMX30P20 supports CW up to average 2 W. It’s package type is SMD type product enabling Pb-Free solder and meets RoHS-6.
RN2 20dB Directional Coupler CMX35P20KEY FEATURES:
1、Frequency range 2300 – 3700 MHz
2、Excellent high-power capacity up to average 2 watts
3、Excellent stable performance at different temperatures
4、Low insertion loss Max 0.22 dB high conductivity metal conductor (Ag), and gold (Au) plating
5、Small size (2.0 x 1.25 mm) SMD package
6、RoHS compliance (Pb-Free)
RN2 20dB Directional Coupler CMX35P20 APPLICATIONS：
1、Applications using GSM, UMTS, and LTE
2、RF amplifiers
RN2 CMX30P20 is best application solution for GSM, UMTS, and LTE and communications equipment, requiring low insertion loss and high power.RN2 CMX30P20 supports CW up to average 2 W. It’s package type is SMD type product enabling Pb-Free solder and meets RoHS-6.
RN2 20dB Directional Coupler CMX35P20KEY FEATURES:
1、Frequency range 2300 – 3700 MHz
2、Excellent high-power capacity up to average 2 watts
3、Excellent stable performance at different temperatures
4、Low insertion loss Max 0.22 dB high conductivity metal conductor (Ag), and gold (Au) plating
5、Small size (2.0 x 1.25 mm) SMD package
6、RoHS compliance (Pb-Free)
RN2 20dB Directional Coupler CMX35P20 APPLICATIONS：
1、Applications using GSM, UMTS, and LTE
2、RF amplifiers
3、Communications equipment

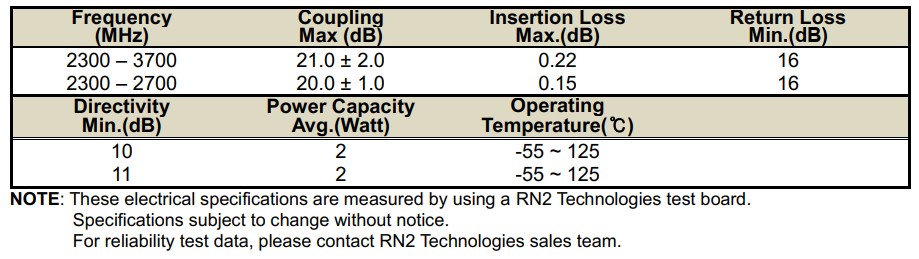

RN2 20dB Directional Coupler CMX35P20 ELECTRICAL SPECIFICATIONS:
