The RN2 CMX35E03 is a 3dB, 90° hybrid coupler with high-power capacity and stable performance in different temperatures. The LTCC, high conductivity metal conductor (Ag), and gold (Au) plating enable the CMX35E03 to minimize insertion loss and improve durability for thermal stabilization and electricity.
The RN2 CMX35E03 is suited for applications using GSM, UMTS, and LTE and communications equipment, requiring low insertion loss and high power.The RN2 CMX35E03 supports up to average 25 watts. It is a SMD type product enabling Pb-Free solder and meets RoHS-6.
RN2 CMX35E03 3dB 90° Hybrid Coupler KEY FEATURES：
1、Excellent high-power capacity up to average 25 watts
2、Excellent stable performance at different temperatures
3、Low insertion loss based on a LTCC base (Er = 6), high conductivity metal conductor (Ag), and gold (Au) plating
4、Surface mount type
5、RoHS compliance (Pb-Free)
RN2 CMX35E03 3dB 90° Hybrid Coupler APPLICATIONS：
1、Applications using GSM, UMTS, and LTE
2、RF amplifiers
3、Communications equipment
The RN2 CMX35E03 is suited for applications using GSM, UMTS, and LTE and communications equipment, requiring low insertion loss and high power.The RN2 CMX35E03 supports up to average 25 watts. It is a SMD type product enabling Pb-Free solder and meets RoHS-6.
RN2 CMX35E03 3dB 90° Hybrid Coupler KEY FEATURES：
1、Excellent high-power capacity up to average 25 watts
2、Excellent stable performance at different temperatures
3、Low insertion loss based on a LTCC base (Er = 6), high conductivity metal conductor (Ag), and gold (Au) plating
4、Surface mount type
5、RoHS compliance (Pb-Free)
RN2 CMX35E03 3dB 90° Hybrid Coupler APPLICATIONS：
1、Applications using GSM, UMTS, and LTE
2、RF amplifiers
3、Communications equipment

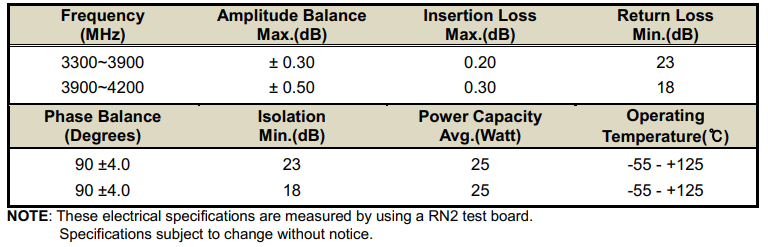

RN2 CMX35E03 3dB 90° Hybrid Coupler ELECTRICAL SPECIFICATIONS：
