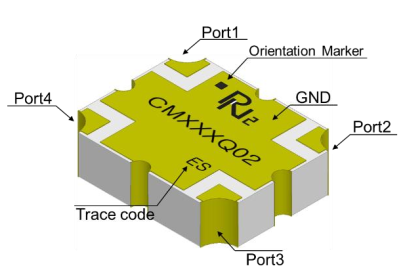

RN2 2dB Asymmetric Coupler CMX25Q02
Source:
Time:2020-06-14 22:54:15
views:
The RN2 CMX25Q02 is a 2dB, Asymmetric coupler with high-power capacity and stable performance in different temperatures. The LTCC, high conductivity metal conductor (Ag), and gold (Au) plating enable the CMX25Q02 to minimize insertion loss and improve durability for thermal stabilization and electricity.
The RN2 CMX25Q02 is suited for applications using GSM, UMTS, and LTE and communications equipment, requiring low insertion loss and high power. The RN2 CMX25Q02 supports up to average 150 watts. It is a SMD type product enabling PbFree solder and meets RoHS-6.
RN2 2dB Asymmetric Coupler CMX25Q02 KEY FEATURES:
1、Excellent high-power capacity up to average 150 watts
2、Excellent stable performance at different temperatures
3、Low insertion loss based on a LTCC base (Er = 6), high conductivity metal conductor (Ag), and gold (Au) plating
4、Surface mount type
5、RoHS compliance (Pb-Free)
RN2 2dB Asymmetric Coupler CMX25Q02 APPLICATIONS:
1、Applications using GSM, UMTS, and LTE
2、RF amplifiers
3、Communications equipment

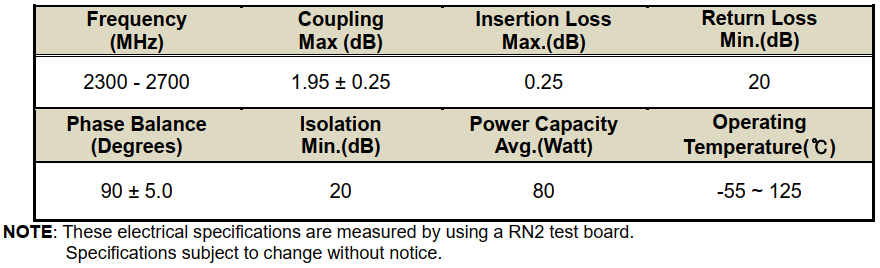

RN2 2dB Asymmetric Coupler CMX25Q02 ELECTRICAL SPECIFICATIONS:
