AMOTECH ASC-504060E00-S00 coils for wireless power Receiving Antenna Data Sheet

Source: Time:2018-09-28 11:11:52 frequency:

        Amotech ASC-504060E00-S00, RX power coils have received technical reference designs in the IDT P9221-R wireless power receiver 15W wireless charger product. This is a hot item in the mobile phone market. Samsung's new S8 is using IDT and Amotech. If you are choosing an IDT chipset, you can contact us.


AMOTECH


Amotech ASC-504060E00-S00 Features:
• WPC receive coil
• For up to 15W Rx applications
• For 5V ~ 9V charging circuit
• High permeability shielding of WPC
• Block the charge flux from the sensitive element or battery
• durable building


Only Coil ELECTRICAL SPECIFICATIONS
L0 INDUCTANCE
at 100KHz
1V, 0A
(uH±5%)
ACR
at 20℃
(mΩ±5%)
EFFICIENCY
at 1A
(%)
Q
at
100KHz
5 150 >65 >17



COIL DESCRIPTION
TURNs
THICKNESS
(MAX)
LEAD
LENGTH
TINNED WIRE
LENGTH
10 0.43mm 48mm 3mm



SHEET DESCRIPTION
Type PART NO. Dimensions
(±0.5)
THICKNESS
(±0.05)
AWS AWS-4H-125-30B-10 50x40 mm 0.155mm



Rx Antenna (coil+sheet) ELECTRICAL SPECIFICATIONS
Ls INDUCTANCE
at 100KHz
1V, 0A
(uH ±10% )
ACR
at 20℃
(mΩ±10%)
EFFICIENCY
at 1A
(%)
Q
at
100KHz
8.2 220 >65 >18

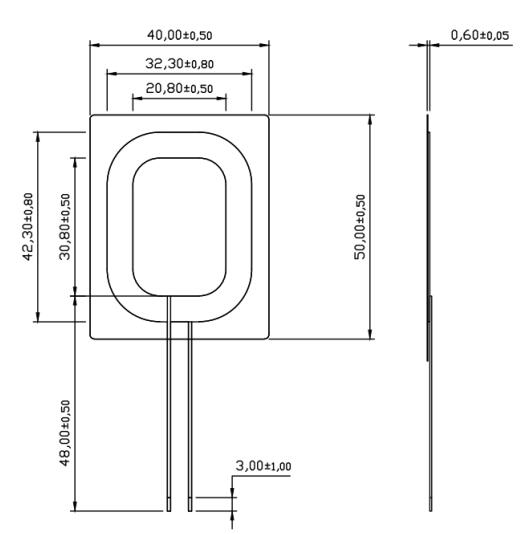

DIMENSIONS in millimeters
Amotech




DESCRIPTION
ASC-504060E00-S00 ±10%
MODEL INDUCTANCE TOLERANCE
