LexUVC 3535 Emitter PU35CL1 V0 Feature：
1、UVC LED
2、Compact dimensions: 3. 5 mm × 3.5 mm × 1.45 mm
3、Dice Technology : AlGaN
4、View angle: = 125°
5、Environmental friendly ; RoHS compliance
6、Packing : 250 & 500 pcs/reel
LexUVC 3535 Emitter PU35CL1 V0 Applications：
1、Sterilization
2、Water purification
3、Air purification
(2)The Forward Voltage tolerance is ±0.1V
(3)Peak Wavelength tolerance is ±5nm
(4)Thermal resistance is calculated from junction to solder
(2) Proper current rating must be observed to maintain junction temperature below Tj max.
1、UVC LED
2、Compact dimensions: 3. 5 mm × 3.5 mm × 1.45 mm
3、Dice Technology : AlGaN
4、View angle: = 125°
5、Environmental friendly ; RoHS compliance
6、Packing : 250 & 500 pcs/reel
LexUVC 3535 Emitter PU35CL1 V0 Applications：
1、Sterilization
2、Water purification
3、Air purification

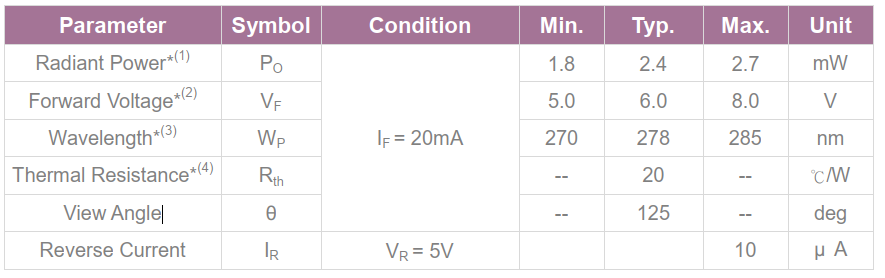

LexUVC 3535 Emitter PU35CL1 V0 Opto-Electrical Characteristics：
(2)The Forward Voltage tolerance is ±0.1V
(3)Peak Wavelength tolerance is ±5nm
(4)Thermal resistance is calculated from junction to solder

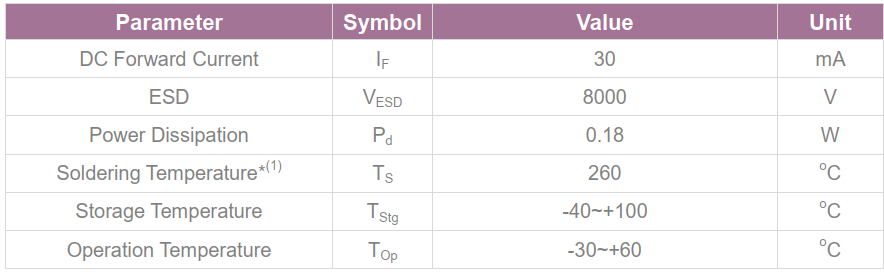

LexUVC 3535 Emitter PU35CL1 V0 Absolute Maximum Ratings：
(2) Proper current rating must be observed to maintain junction temperature below Tj max.
