Harvatek has developed an optical lens package type with heat dissipation as the guide. It is equipped with a high-power 272nm UVC LED. With an input power of 1.4W, the UVC LED has an irradiation energy of 25mW / cm2. With less advantages, it can achieve a sterilization effect of 99.99%, which can be used in daily sterilization and disinfection.

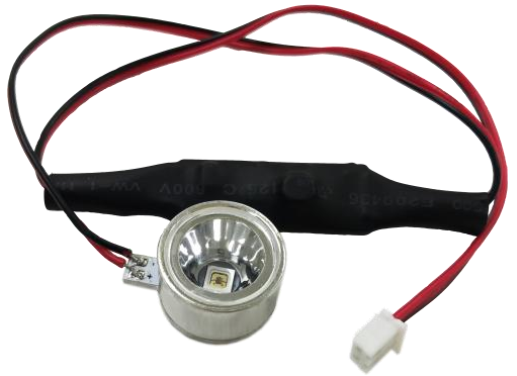

The core of an air sterilization module made up from foundation that focuses light and a dust-proof housing that was specially designed according to the characteristics of high-power ultraviolet LED. From sterilization effectiveness point, the module can replace the traditional UV lamps. It has the advantages of occupying only small volumes, high sterilizing efficiency, and can effectively guaranteeing the indoor environment sanitation of the user.
1、Sterilization rate reaches above 70% after turning on module for 1 hour；
2、Operating under pulse mode can extend life cycle to above 10,000 hours
3、Extremely low wind resistance, greatly reducing the noise of air flow
4、Extremely low standby operating current：< 0.1 uA
5、Lead-free, environmental, and ROHS compatible
The core of an air sterilization module made up from foundation that focuses light and a dust-proof housing that was specially designed according to the characteristics of high-power ultraviolet LED. From sterilization effectiveness point, the module can replace the traditional UV lamps. It has the advantages of occupying only small volumes, high sterilizing efficiency, and can effectively guaranteeing the indoor environment sanitation of the user.
1、Sterilization rate reaches above 70% after turning on module for 1 hour；
2、Operating under pulse mode can extend life cycle to above 10,000 hours
3、Extremely low wind resistance, greatly reducing the noise of air flow
4、Extremely low standby operating current：< 0.1 uA
5、Lead-free, environmental, and ROHS compatible
6、Optional integrated infrared sensor, dynamically identify human status in specific area and adjust the operating mode accordingly ( intelligent sterilization)
