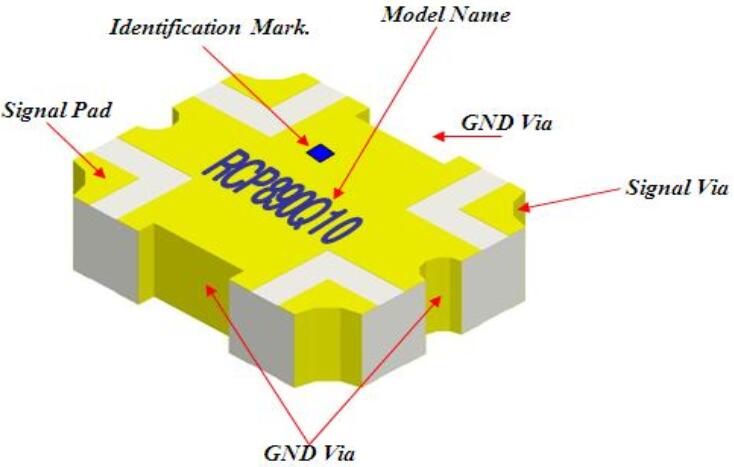

RN2 LTCC 10dB Directional Coupler RCP890Q10 Features：
1、Directional Coupler 10dB2、Surface mount type
3、Suitable for operation frequency 815~960MHz
4、RoHS compliance
5、High stability in temperature and humidity for LTCC base
6、Low loss for Silver(Ag) conductor
7、Miniature size and high power capability
8、Lead-free alloy solderable
9、Thermal expansion corresponding with common substrate
RN2 LTCC 10dB Directional Coupler RCP890Q10 Electrical Specification：
1、Freq. (MHz)：815-960
2、Coupling (dB)：10 ± 1
3、Directivity Max (dB)：-15
4、Insertion Loss min (dB)：-0.3
5、VSWR Max：1.3
6、Power Capacity Avg. (Watt)：80
7、Characteristic Imp.(ohm)：50
8、Operating Temp.(℃)：-55 to +125
