POCONS RF CABLE CLIP PCC1007W SMD TYPE

Source: Time:2019-02-19 16:35:41 views:

POCONS RF CABLE CLIP PCC1007W SMD TYPE Specification:
1、Appearance and Dimension : Refer to the approved drawing.
①Material : Stainless steel ( SUS 301 )
②Material Thickness : 0.15t
2、Surface treatment
Nickel Underplate : 0.4 ~ 1.5㎛
Plating : Sn 1 ~ 3㎛

POCONS RF CABLE CLIP PCC1007W SMD TYPE Solder pattern recommend:
POCONS

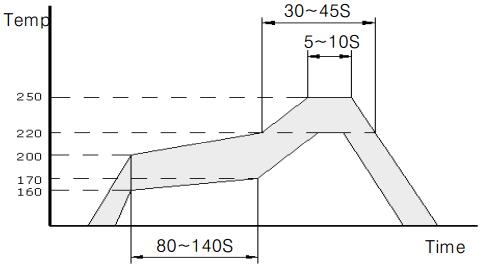

POCONS RF CABLE CLIP PCC1007W SMD TYPE Recommend Temperature (Reflow Profile):
1、Initial increment :1.5~2.0°C/sec
2、Warm up section :160 ~200°C, 80sec~140sec
3、Increment : 2.5°C/sec
4、Soldering maintenance section :220°C, 30sec~45sec
5、Maximum temperature : Less than 250°C, 10sec
POCONS
POCONS RF CABLE CLIP PCC1007W SMD TYPE Feature:
1、Efficient use of PCB space
2、Improve productivity by automatic mount of small size Clip
3、Easy to control warehouse by standardization

POCONS RF CABLE CLIP PCC1007W SMD TYPE Application:
All product which is used rf cable such as Wibro USB Dongle, GPS Module,PMP, Navigation, UMPC, PON and etc.
