1、Pocons SMD RF CABLE CLIP PCC1003 Material Specification:
Appearance and Dimension : refer to the drawing
1.Material : Stainless steel ( SUS 301 )
2.Material Thickness : 0.15t
Surface treatment
Base plating : Ni (thickness : more than 0.4㎛)
Finish Plating : Lusterless Sn (thickness : more than 1.0㎛)
2、Pocons SMD RF CABLE CLIP PCC1003 Recommend Rf Cable size:
Wire Size Ø 0.78 (Ø0.74 ~ 0.82)

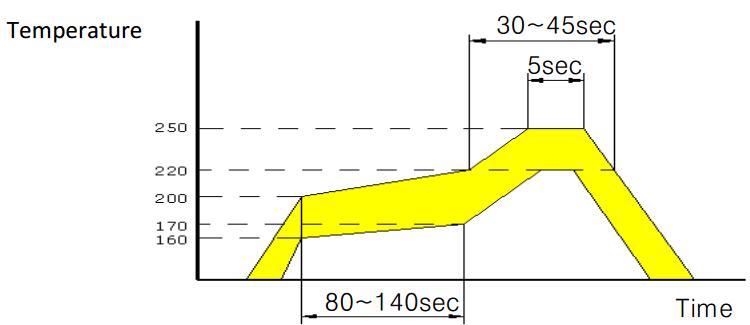

3、Pocons SMD RF CABLE CLIP PCC1003 Recommended soldering temperuture profile:
-initial increment :1.5~2.0°C/sec
-warm up :160 ~200°C, 80sec~140sec
-Increment : 2.5°C/sec
-Soldering :220°C, 30sec~45sec
Appearance and Dimension : refer to the drawing
1.Material : Stainless steel ( SUS 301 )
2.Material Thickness : 0.15t
Surface treatment
Base plating : Ni (thickness : more than 0.4㎛)
Finish Plating : Lusterless Sn (thickness : more than 1.0㎛)
2、Pocons SMD RF CABLE CLIP PCC1003 Recommend Rf Cable size:
Wire Size Ø 0.78 (Ø0.74 ~ 0.82)
3、Pocons SMD RF CABLE CLIP PCC1003 Recommended soldering temperuture profile:
-initial increment :1.5~2.0°C/sec
-warm up :160 ~200°C, 80sec~140sec
-Increment : 2.5°C/sec
-Soldering :220°C, 30sec~45sec
-Highest : 260°C, less than 10sec
