AHF series is High attenuation Common mode filter for high speed differential transmission line.This product shows excellent noise reduction without signal loss by high coupled Inductor pair.
Amotech Automotive Common Mode Filter with ESD function AHFE12D350CL Features：
1、Excellent noise reduction without signal loss
2、Built-in two ESD suppression devices each line

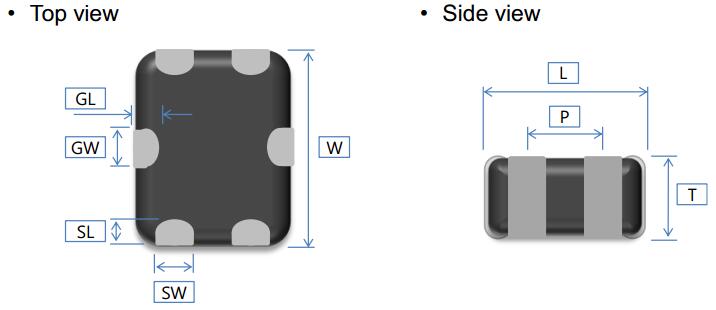

3、Low profile (1.27 X 1.0 X 0.55mm)
4、Ceramic multilayer type SMD component
5、RoHS compliance
6、AEC-Q200 qualified
Amotech Automotive Common Mode Filter with ESD function AHFE12D350CL Applications：
1、Possible to apply variously for the purpose of elimination of common mode noise and protection of ESD
2、High speed differential transmission lines at electronic devices (ex. LVDS, USB2.0, HDMI, etc.)
3、Car Audio, AV navigation, Multi-jack, etc.
Amotech Automotive Common Mode Filter with ESD function AHFE12D350CL Features：
1、Excellent noise reduction without signal loss
2、Built-in two ESD suppression devices each line
3、Low profile (1.27 X 1.0 X 0.55mm)
4、Ceramic multilayer type SMD component
5、RoHS compliance
6、AEC-Q200 qualified
Amotech Automotive Common Mode Filter with ESD function AHFE12D350CL Applications：
1、Possible to apply variously for the purpose of elimination of common mode noise and protection of ESD
2、High speed differential transmission lines at electronic devices (ex. LVDS, USB2.0, HDMI, etc.)
3、Car Audio, AV navigation, Multi-jack, etc.
Amotech Automotive Common Mode Filter with ESD function AHFE12D350CL Electrical characteristics：
| Parameter |
Common Mode Impedance @ 100 MHz |
DC Resistance |
Capacitance @ 1MHz |
Rated Voltage |
Rated Current |
Insulation Resistance |
Leakage Current @ 5Vdc |
| Symbol | ZCM | RDC | CP | VDC | IDC | IR | IL |
| Units | Ω | Ω | pF | V (DC) | mA (DC) | MΩ | μA |
| Value | 35 ± 30% | Max. 3.0 | Max. 1.2 | 5 | 100 | Min. 10 | Max. 1.0 |
