Amotech Automotive EMI ESD Filter ADF10S05Q080EF2 is a multi-functioned filter for EMI/ESD protection with R-L-C structure of type pi, and mainly uses to interrupt EMI noise at the digital circuit in the Car audio or AVN etc., and uses to protect ESD of high voltage.
Amotech Automotive EMI ESD Filter ADF10S05Q080EF2 Features:
1、R-L-C type 4 channels array filter

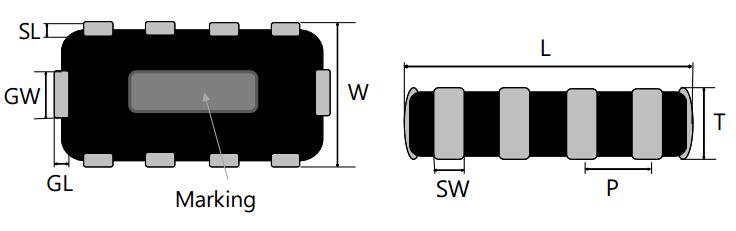

2、0805 (2012mm) size
3、IEC 61000-4-2 (ESD) Level #4, MSL Level #1
4、Multilayer ceramic chip component.
5、RoHS compliance
6、AEC-Q200 qualified
Amotech Automotive EMI ESD Filter ADF10S05Q080EF2 Applications：
1、Possible to apply variously for elimination of high frequency noise, and protection of ESD
2、Intercept noise generating from control line and data line of display devices.
3、Automotive (Car Audio, AV navigation etc.)
(1) Maximum continuous DC working voltage
Amotech Automotive EMI ESD Filter ADF10S05Q080EF2 Features:
1、R-L-C type 4 channels array filter
2、0805 (2012mm) size
3、IEC 61000-4-2 (ESD) Level #4, MSL Level #1
4、Multilayer ceramic chip component.
5、RoHS compliance
6、AEC-Q200 qualified
Amotech Automotive EMI ESD Filter ADF10S05Q080EF2 Applications：
1、Possible to apply variously for elimination of high frequency noise, and protection of ESD
2、Intercept noise generating from control line and data line of display devices.
3、Automotive (Car Audio, AV navigation etc.)
Amotech Automotive EMI ESD Filter ADF10S05Q080EF2 Electrical characteristics：
| Vdc(1) |
Varistor Voltage (Vn) @1mA DC |
DC resistance (Rdc) |
Rdc tolerance |
Capacitance (Cp) @ 1MHz, 0.5 Vrms (C1 + C2) |
Cp tolerance |
Leakage Current (IL) @ Vdc |
Insulation Resistance (IR) @3.0V dc |
Minimum -20dB Atten. Band |
| (V) | (V) | (Ω) | (%) | (pF) | (%) | (uA) | (MΩ) | (MHz) |
| 10 | 25±5 | 80 | ±30 | 40 + 40 | ±30 | 20 max. | > 10 | 250~3000 |
