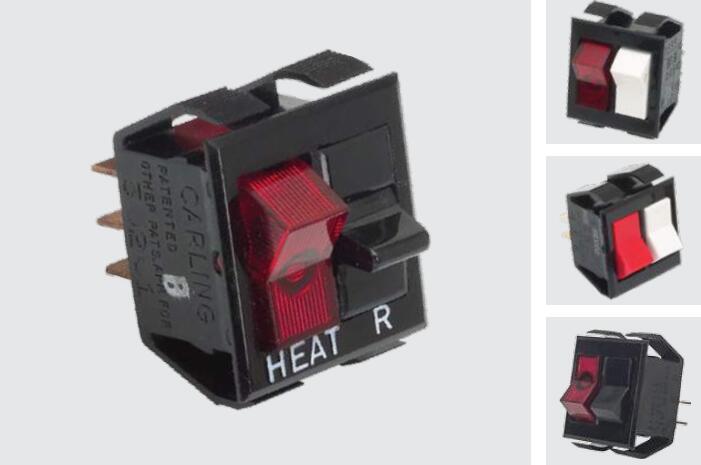

The Carling TTG-Series Mid-Sized Tippette snap-in rocker switches consist of two single pole illuminated or nonilluminated switches in a common base. Each pole can have the same or different switch function. These switches are AC rated up to 20 amps and are also suitable for low-voltage DC applications, in a wide range of markets.
1、Independent or Dependent Illumination
2、Ratings up to 20 Amps
3、Diamond or Long Line Lens Options
4、Self-Cleaning Wiping Style Contacts
二、Carling Rocker Switches TTG Series Typical Applications:
1、Appliance
2、HVAC
3、Food Service
4、Transportation
三、Dielectric Strength
UL/CSA:
1000V - live to dead metal parts
四、Electrical Life
50,000 cycles - maintained
25,000 cycles - momentary
五、Mechanical Life：100,000 cycles
六、Operating Temperature：32°F to 185°F (0°C to 85°C)
