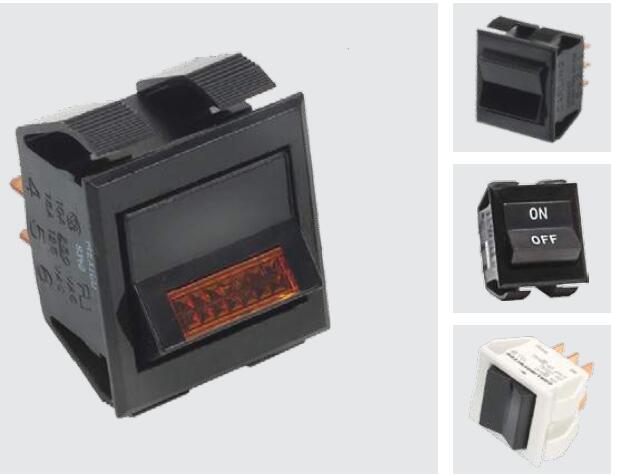

The TG-Series Mid-Sized Tippette rocker switches are single or double pole and feature an all nylon doubleinsulated construction. These switches are designed with snap-in mounting for fast, low cost assembly. The illuminated version (LTG) is available with either a paddle or rocker actuator. These AC rated switches are also suitable for low-voltage DC applications assuring compatibility for a wide range of markets.
1、Single or Double Pole
2、Gloss Finish Surfaces
3、Illuminated or Non-Illuminated
4、20 Available Circuit Options
二、Carling Rocker Switches TG/LTG Series Typical Applications:
1、Appliance
2、HVAC
3、Food Service
4、Transportation
三、Dielectric Strength
UL/CSA:
1000V - live to dead metal parts
四、Electrical Life
50,000 cycles - maintained
25,000 cycles - momentary
五、Mechanical Life：100,000 cycles
六、Operating Temperature：32°F to 185°F (0°C to 85°C)
