| Part number | Size | CCT | IV | Vf | TYP |
Viewing Angle 2Ø 1/2 |
peak pulse condition |
| HT-SC141421-W | 1.4x1.4x0.24 | 2050K-2350K |
210LM(TYP) |
3.4-3.6-3.8 | 0.6℃/W | 120 |
1000mA 400ms on/3600ms off |
Harvatek CSP Flash 2200K Electro-Optical Absolute Maximum Ratings:
(Ta=25℃)
| Parameter | Rating | Unit | Conditions |
| DC Forward Current *1 | 500 | mA | - |
| LED junction Temperature | ≤125 | ℃ | - |
| Operation Temperature | -40~+85 | ℃ | - |
| Storage Temperature | -40~+85 | ℃ | - |
| Soldering Temperature | 260 | ℃ | For 5 sec.Max. |
*1：Proper current detating must be observed to maintain junction temperature below the maximum.

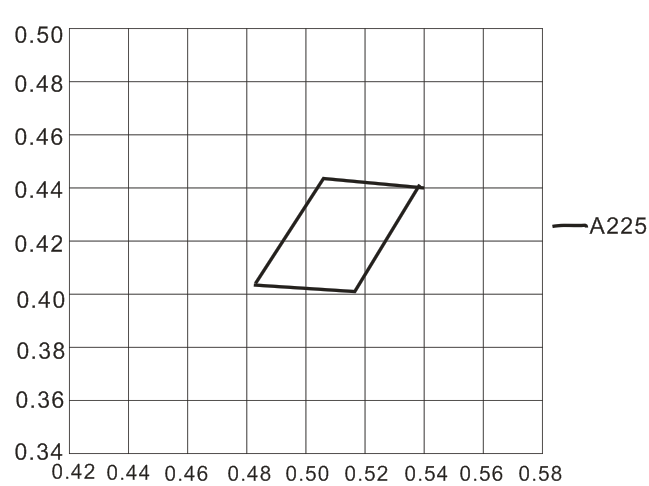

Harvatek CSP Flash 2200K Color Temperature Coordinates:
