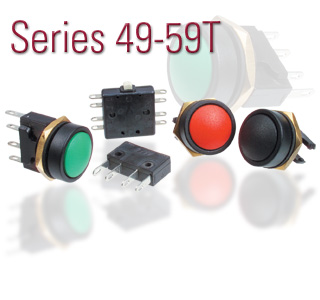

ITW Panel Sealed PushButton Switches 16mm Series 49-59T
Source:
Time:2020-08-18 00:23:43
views:
ITW SERIES 49-59T 16MM PANEL SEALED PUSHBUTTON SWITCHES WITH SERIES 16 & 26 SNAP SWITCHES.These rugged panel sealed pushbuttons employ the workhorse basic switches for high (or low) current applications. Connections are made with solder terminals at the rear of the switch. The pushbuttons are available with square or round bezels. These switches are ideal for harsh environments.
ITW Panel Sealed PushButton Switches 16mm Series 49-59T Features:
• Panel sealed to IP67
• Momentary action
• Solder terminals
• Flame retardant UL rated material
• Life (min.) – 1,000,000 cycles
• Available with Series 16 or 26 switch
• Rated up to 10 amps
ITW Panel Sealed PushButton Switches 16mm Series 49-59T Applications:
• Environmentally demanding keypads
• Mass transport controls
• Communications
• Instrumentation
• Data processing
• Military environments
ITW Panel Sealed PushButton Switches 16mm Series 49-59T MECHANICAL / ELECTRICAL SPECIFICATIONS:
Travel (nominal):
0.09 inches (2.3 mm)
Operating force (nominal):
387g – 561g (3.8N – 5.5N)
Dielectric strength:
1,000 VAC for 1 minute
Insulation resistance:
1 Gigaohm @ 500 VDC
Contact resistance (initial, max):
25 Megaohms
Electrical Life:
50,000 cycles @ 158°F (70°C)
Operating temperature:
-67°F to +221°F (-55°C to +105°C)
Body/Button material:
PBT
Contacts 16-530004:
Silver
Contacts 26-810
Enhanced gold
Current rating 16-530004 (inductive):
Form X or Y: 10 amps 125 VAC; 10 amps 28 VDC
Form Z: 5 amps 125/250 VAC; 3 amps 28 VDC
