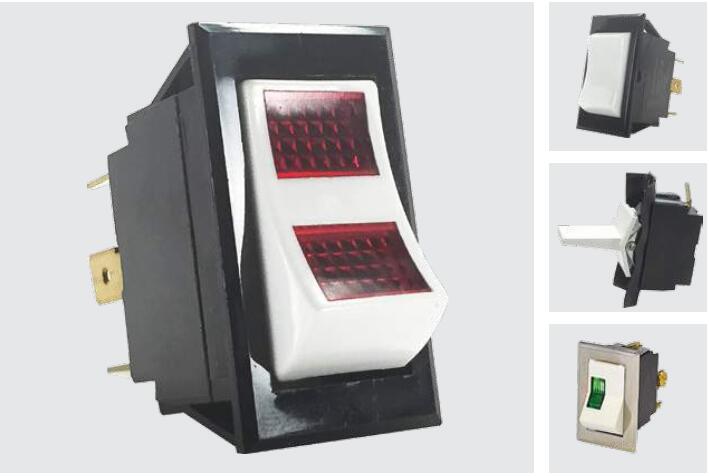

The Tippette Series is a traditionally styled rocker switch, available in sealed or unsealed versions. These switches are appropriate for use in general purpose applications which may or may not require a modicum of environmental protection. The Tippette Series is available in both illuminated and non-illuminated versions and features a wide variety of circuits, actuator styles and bracket options. This versatile offering includes international agency certifcations and ratings to 26 amps for select circuits.
一、Carling Full Size Rocker Switches Tippette Series Electrical:
|
Contact Rating |
15 amps, 125 VAC 10 amps, 250 VAC 3/4 HP 125-250 VAC 15 amps, 12-30 VDC |
| Life |
25,000 cycles circuit dependent 50,000 cycles circuit dependent consult factory for applicable circuits |
| Contacts Terminals |
Fine silver, silver cad-oxide Terminals Brass or copper/silver plate 1/4” (6.3mm) Quick Connect standard. Solder lug - Brass Tin Plated Wire Lead 16 gauge standard 105°C 600VAC Screw Terminals - Brass |
二、Carling Full Size Rocker Switches Tippette Series Physical:
| Lighted |
Incandescent - rated 10,000 hours |
| Seals |
Bracket - Actuator WBL/MBL optional external gasket panel sea |
| Base | Phenolic (150°C) |
| Rocker/Bracket | Nylon 66 (105°C) |
三、Carling Full Size Rocker Switches Tippette Series Mechanical:
| Endurance | 100,000 cycles minimum |
四、Carling Full Size Rocker Switches Tippette Series Mounting:

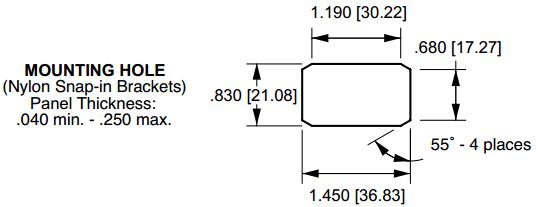

*Angled corners are suggested for optimum fit.
Standard rectangular cutout is acceptable.
