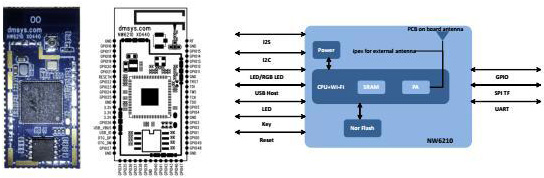

The NW6210 is a high-performance, low-cost WLAN module for the development of IoT devices for the development of wireless speakers, wireless storage, smart toys, home gateways, and intelligent product applications. At the same time the module provides a variety of peripheral interfaces.
Wi-Fi audio / wireless storage / smart toys / home gateway / smart applications / Wi-Fi-based network applications.
The NW6210 Wireless Audio / Storage Module Specification Definition:
| Master: | Marvell 88MW302 |
| Interface: | I2S/I2C/LED/USB Host/Key/Reset/GPIO/SD/UART |
| Extension Type: | Stamp hole |
| Playback format: | MP3/WMA |
| Internet of things platform: | QQ IoT/WeChat |
| Low power consumption: | Wireless push 700mW |
| Wireless standby 225mW | |
| Dormancy 150mW | |
| Antenna: | The onboard or external |
| Size: | 38*25mm |
| Standard: | 802.11 b/g/n |
| Frequency: | 2.4GHz |
| Wireless transmit power(dBm)： | 802.11b 17±2 |
| 802.11g 14±2 | |
| 802.11n 13±2 | |
|
Ambient temperature： |
-40 – 85℃ |
|
Storage temperature： |
-65 - 150℃ |
| Working humidity： | 10%-90%RH (no condensing) |
|
Storage humidity： |
5%-90%RH (no condensing) |
