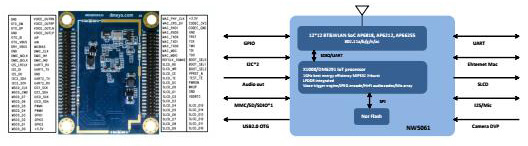

The NW5061 is a high-performance, low-cost WLAN module for developing IoT devices such as wireless speakers, smart toys, home gateways, and smart product applications. Module based on Junzheng X1000 / Damai DM6291A SoC, the master frequency up to 1.0GHz, integrated 32MB / 256MB LPDDR, optional 8 ~ 32MB nor or 128MB ~ 256MB Nand Flash, configure 802.11b / g / n or 802.11a / b / G / n / ac Wi-Fi solution with a maximum wireless rate of up to 433Mbps and Bluetooth 4.0 BLE, while providing two 50-pin plug-in expansion interface as a peripheral extension such as GPIO, I2C, Audio out, MMC / SD / SDIO, USB OTG, UART, Ethernet MAC, SLCD, PWM, I2S / MIC, Camera DVP and so on.
The NW5061 wireless module main function：
Wi-Fi or Bluetooth audio / smart toys / home gateway / wireless storage / smart applications / Bluetooth and Wi-Fi-based network application / voice recognition module.
The NW5061 wireless module main function：
Wi-Fi or Bluetooth audio / smart toys / home gateway / wireless storage / smart applications / Bluetooth and Wi-Fi-based network application / voice recognition module.
The NW5061 wireless Specification:
| Master： | X1000/DM6291A |
| CPU： | MIPS 1GHz |
| RAM(MB)： | SPI Nor Flash 8/16/32, LPDDR 32/256 |
| Wi-Fi： | BCM43362 2.4G Wi-Fi; BCM43438 Bluetooth+2.4G Wi-Fi; |
| BCM43455 Bluetooth+2.4G+5G Wi-Fi | |
| Connector： | PWM/GPIO/I2C/Audio out/MMC/SD/SDIO/USB OTG2.0/I2S/ |
| UART/Ethernet MAC/(D)MIC/SLCD/Camera DVP | |
| Extended type： | Pin |
| Codec： | 192KHz/24bit |
| Connection： | AirKiss/bluetooth |
| Play format： | MP3/WMA/WAV/FLAC/ACC/M4A/OGG |
| The Internet of things platform： | QQ IoT/WeChat |
| Size: | 48*40mm |
| Low power consumption | MIPS32 XBurste Kernel |
| Wi-Fi STA Open+BT Open No data transmission 160mW | |
| Wi-Fi STA Open+BT Open+Data transmission 290mW | |
| Wi-Fi AP Open+BT Open No data transmission 312mW | |
| Wi-Fi AP Open+BT Open+Data transmission 353mW | |
| Static power(RTC Open) 72uW | |
| Antenna: | External (reserved ipex interface) |
| Size： | 40*48mm |
| Standard: | 802.11 b/g/n or 802.11a/b/g/n/ac |
| Frequency： | 2.4GHz/5GHz |
| The largest wireless rate： | 433.3Mbps |
| The wireless transmission power(dBm)： | 802.11a 13±2 |
| 802.11b 17±2 | |
| 802.11g 14±2 | |
| 802.11n 13±2 | |
| 802.11ac 12±2 | |
| The operating temperature of the environment | -40~85℃ |
|
Storage temperature: |
-65~150℃ |
|
Working humidity: |
10%~90%RH (no condensing) |
|
Store humidity: |
5%~90%RH (no condensing) |
