1、low self-discharge;
2、high capacity: 10 times the same volume EDLC;
3、High constant voltage: 3.8V;
4、terminal type
CapSolution Lithium Ion Capacitor CS LIC Series Applications:
Use 3.6V lithium primary battery: water meter, gas meter, electric meter, ETC.
CapSolution Lithium Ion Capacitor CS LIC Series Standard:
| Series | NO. | Operating Voltage(V) | Minimum voltage(V) |
Operating temperature (℃) |
Internal resistance(mΩ) AC-ESR(1Khz) |
capacity (F) |
Maximum weight (g) |
terminal type |
| CS LIC | CS LIC 0813 | 3.8 | 2.5 | -20 ~ 70 | 500 | 20 | 1.5 |
lead |
| CS LIC 0820 | 3.8 | 2.5 | -20 ~ 70 | 200 | 40 | 2.0 | lead | |
| CS LIC 1020 | 3.8 | 2.5 | -20 ~ 70 | 150 | 80 | 3.0 | lead | |
| CS LIC 1030 | 3.8 | 2.5 | -20 ~ 70 | 100 | 120 | 6.0 | lead | |
| CS LIC 1320 | 3.8 | 2.5 | -20 ~ 70 | 100 | 120 | 5.0 | lead | |
| CS LIC 1620 | 3.8 | 2.5 | -20 ~ 70 | 50 | 250 | 8.0 | lead | |
| CS LIC 1840 | 3.8 | 2.5 | -20 ~ 70 | 25 | 750 | 20.0 | lead |

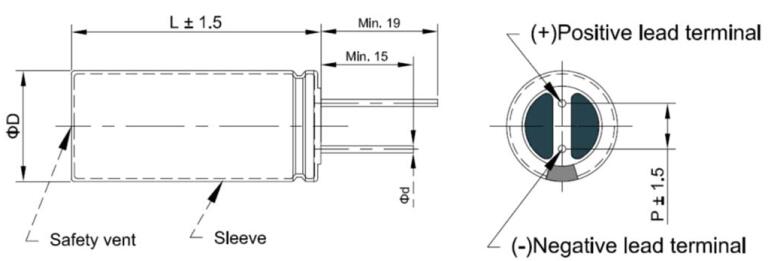

CapSolution Lithium Ion Capacitor CS LIC Series Dimensions (mm, non-proportional):
|
Series | SIZE (mm) | ||
| ØDxL | P | Ød | ||
| LIC 0813 | 08x13 | 3.5 | 0.6 | |
| LIC 0820 | 08x20 | 3.5 | 0.6 | |
| LIC 1020 | 10x20 | 5.0 | 0.6 | |
| LIC 1030 | 10x30 | 5.0 | 0.6 | |
| LIC 1320 | 13x20 | 5.0 | 0.6 | |
| LIC 1620 | 16x20 | 7.5 | 0.8 | |
| LIC 1840 | 18x40 | 7.5 | 0.8 | |
CapSolution Lithium Ion Capacitor CS LIC Series Details:
| Series | LIC 0813 | LIC 0820 | LIC 1020 | LIC 1030 | LIC 1320 | LIC 1620 | LIC 1840 | |
|
Capacitance range |
- 20% to + 80% | |||||||
|
Maximum discharge current |
Continuous discharge |
100mA | 200mA | 250mA | 500mA | 500mA | 750mA | 3.0A |
| pulse (1sec.) | 0.5A | 1.0A | 3.0A | 5.0A | 5.0A | 10.0A | 30.0A | |
|
Maximum charging voltage/current |
4.0V/0.2A | 4.0V/0.3A | 4.0V/0.5A | 4.0V/1A | 4.0V/1A | 4.0V/2A | 4.0V/3A | |
|
High and low temperature characteristics |
Change in capacitance capacity |
± 30% change from 20°C |
||||||
|
Internal resistance changes |
<10 times compared to 20 ° C |
|||||||
|
High temperature load |
testing time |
1,000 (hours) | ||||||
|
Change in capacitance capacity |
± 30% change from initial value |
|||||||
|
Internal resistance changes |
Less than 4 times change from initial value |
|||||||
|
Service life |
Same as high temperature load (test time: 1,500 hours) |
|||||||
