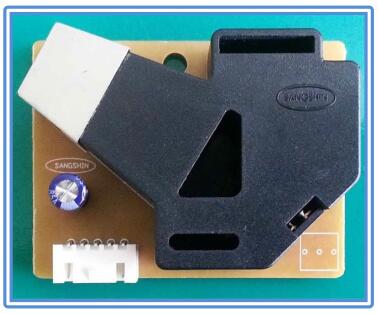

SANGSHIN 灰尘传感器SDPN-05Y特征：
1、确保品质统一性
2、按照客户标准的品质误差，可进行调节
3、确保产品追踪性
SANGSHIN 灰尘传感器SDPN-05Y技术规格：
1、动作电源:DC 5V ± 5% (Ripple:30mV이하)
2、消耗电流 :100mA 以下
3、动作温湿度: - 10 ~ 45℃, 95%RH 以下
4、尺寸: W 59 X H45 X D20 (mm)
5、检出粒子大小: 约 1㎛ 以上
6、输出方式
①Negative Logic Pulse 输出,
②Low Pulse 比率(Hi:4.5V以上, Lo: 0.7V 以下)
| No. | Item | Description |
| 1 | Supply Voltage | DC 5V ± 5% (CN1:Pin1=GND, Pin3=+5V), Ripple:less30mV |
| 2 | Current consumption | Less than 100mA |
| 3 | Operating temp/humid. | - 10 ~ 45℃, less95%RH (no dew drops) |
| 4 | Storage temperature | - 30 ~ 60℃ |
| 5 | Size | W 59 X H45 X D20 (mm) |
| 6 | Weight | approximately 30g |
| 7 | Detectable particle size | Approximately 1㎛ |
| 8 | Detectable density range |
Approximately up to 1.5pc of cigarette(THIS)/10m3 in clean air (up to 2.0mg/m3 in the range of Particle Counter-1㎛ or higher) |
| 9 | Output method |
1.Negative Logic Pulse output, ① Lo time ratio % (recommended measurement time : 30sec.) ② Hi：approximately 4.5V or higher, Lo : approximately 0.7V or lower 2.TR output: Pull-Up resistance 10㏀ |
| 10 | Measurement implementation |
Approximately 1 minute after power supply (time to stable the temperature of resistor) |
