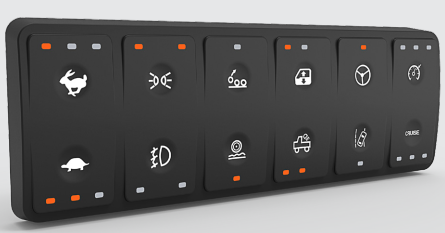

CARLING Compliant with SAE J1939 CAN standards, the CARLING CKP-Series is a customizable keypad featuring laser etched legends and up to three dimmable LED function lights per button, which also offer diagnostic feedback by blinking if there is a fault.

With above and below sealing protection, the CARLING CKP-Series can be installed inside or outside the cab making it ideal for any on/off-highway application. Its low profile design affords a seamless dashboard look and can be mounted either vertically or horizontally.

The CARLING CKP-Series offers significant advantages over traditional electromechanical switches such as 1,000,000 actuation cycles, reduced wire harnessing, and easy installation.

CARLING CKP-SERIES SAE J1939 CAN KEYPAD Highlights:
1、SAE J1939 CAN 2.0b Protocol

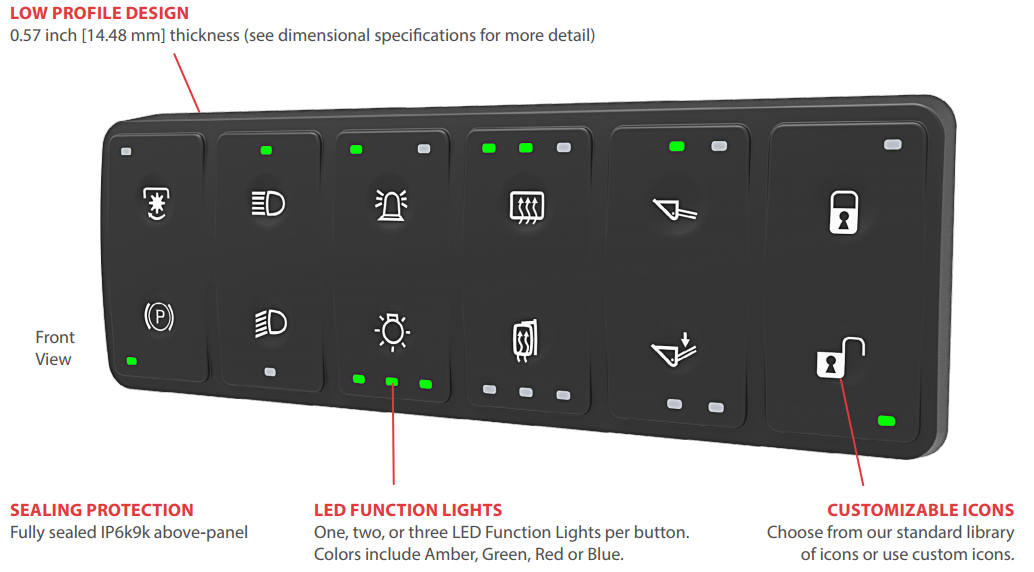

2、IP6k9k Above-Panel Sealing Protection

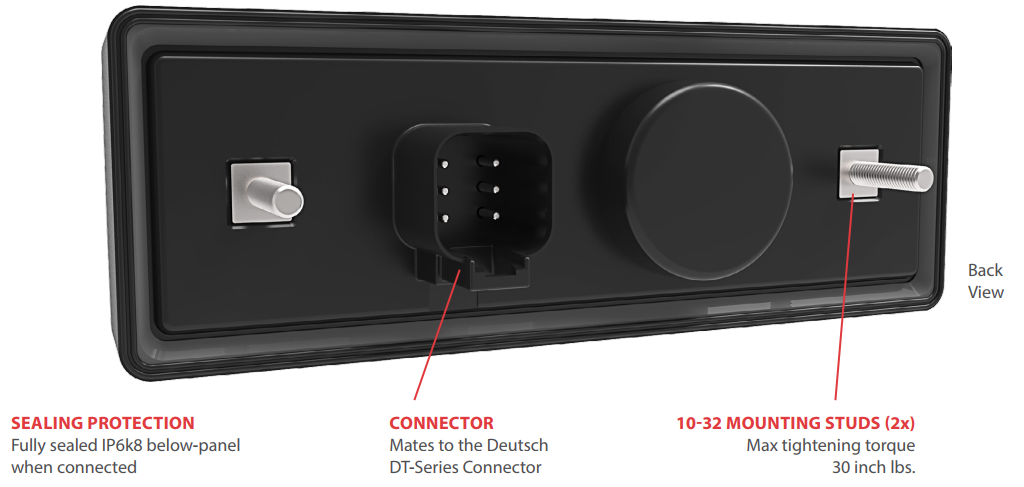

3、IP6k8 Below-Panel Sealing Protection
4、Up to 3 LED Function Lights Per Button
5、Diagnostic Feedback
6、Standard or Custom Laser Etched Legends
7、1,000,000+ Button Actuation Cycles
8、Low Current Switching
9、8 to 32V Operating Voltage
10、Tactile and Audible Feedback

CARLING CKP-SERIES SAE J1939 CAN KEYPAD Typical Applications:
1、Military
2、On/Off-Highway
①Trucks & Buses
②Construction
③Mining
④Agriculture
⑤Among Others

CARLING CKP-Series DESIGN FEATURES:
